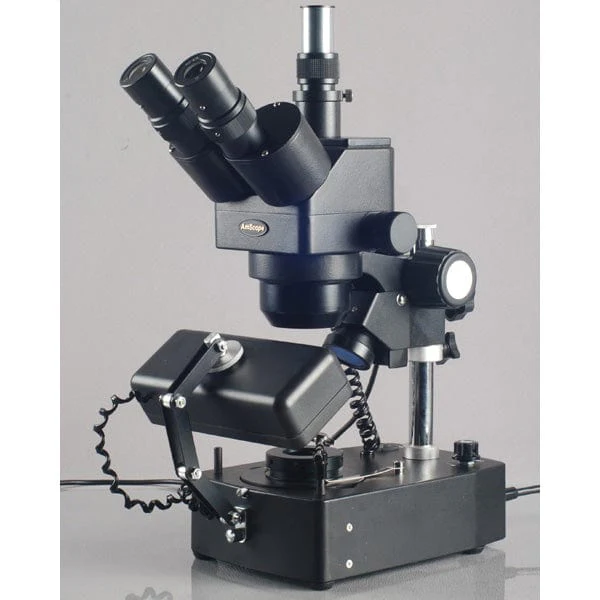

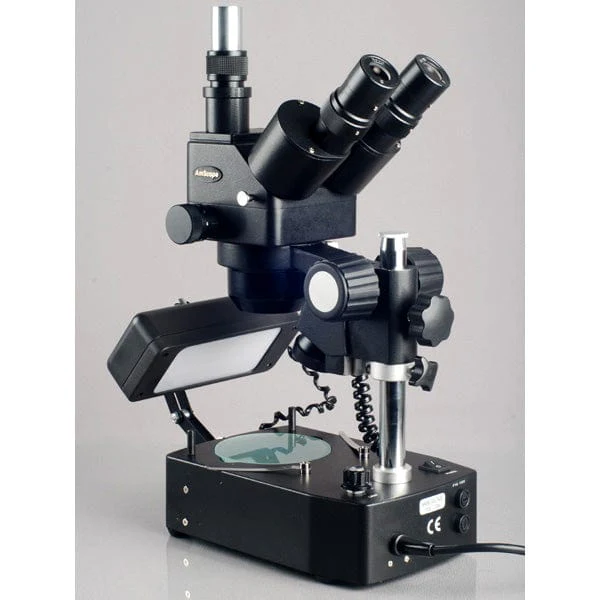

AmScope SH-2 Series Jewelry Gem Trinocular Stereo Microscope 10X-40X Magnification on Pillar Stand with Three Lights

This 10X-40X trinocular jewelry/gem stereo zoom microscope comes with a trinocular zoom head with a photo port, a darkfield condenser, a jewelry/gem clamp, a gooseneck fluorescent rectangular side lighting box, and a both incident (top) & transmitted (bottom) halogen illumination system. The trinocular port enables to add photographic or video capability. The lighting box shining down onto objects is used for the observation of surface details and fine structures of jewels or gemstones. The transmitted illumination through the condenser is for the examination of inside quality of diamonds. The 45 degree inclined trinocular ensures an comfortable observation. This microscope gives crystal clear images. It provides large zoom magnification range (4:1) and large working distance. It is an ideal instrument for gemologists, jewelry dealers and collectors.

Features :

• A brightfield and darkfield trinocular microscopy system for jewelry/gem applications

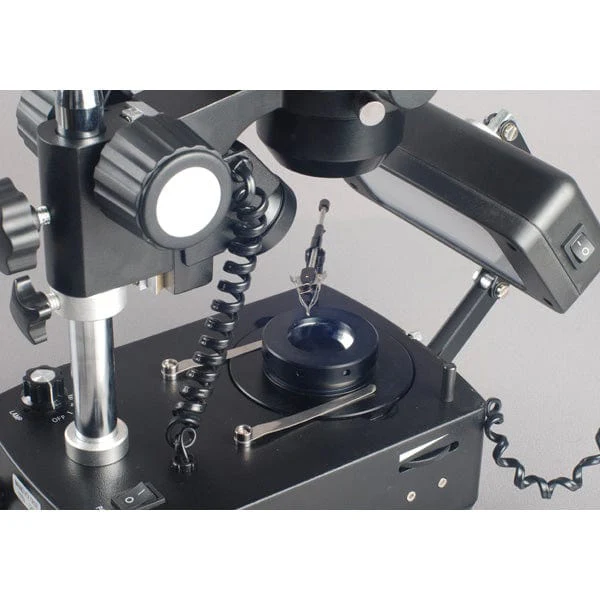

• Three light illumination: incident (top) light, darkfield transmitted bottom light and gooseneck fluorescent rectangular side lighting box

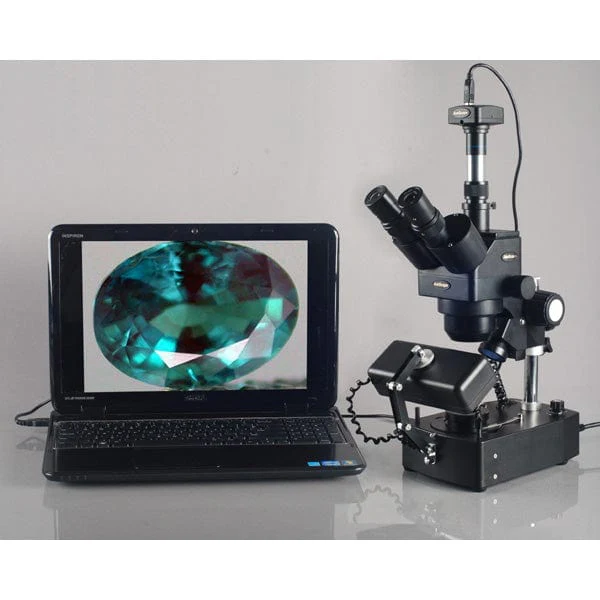

• Trinocular port for adding photographic or video capability
• Large zoom magnification range (10x-40x)
• Darkfield condenser included
• Jewelry/gem clamp included
• 45 degree inclined 360 degree rotatable trinocular head
• High resolution optics with great flatness and contrast
• Sharp stereo erect images over a wide field view
• Crystal clear original true color images
• Eye tube with adjustable diopter
• Metal pillar stand finished with stain resistant enamel
• Accurate alignment ensuring a fatigue-free long time view
• Full optical glass elements
• Precise ground glass lenses
• All metal mechanical components
• Adjustable interpupillary distance
• Rubber eye-guards included
• Dual halogen illumination system
• Built-in top and bottom halogen lights
• Manufactured under restrict ISO 9001 quality control system
• Five (5) year manufacturer warranty for microscope



Specifications :

• Head: 45 degree inclined 360 degree swiveling trinocular
• Eyepiece: 30.5mm widefield WF10X
• Objective: 1.0-4.0X
• Zoom Range: 4.0:1
• Diopter Adjustment: +/-5dp
• Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
• Working Distance: 3-3/8"
• Frosted Glass Plate: 3-3/4" (95mm) in diameter
• White/Black Plastic Plate: 3-3/4" (95mm) in diameter
• Illumination: 12V/10W halogen lamps
• Fluorescent Lamp: 11470K, 1109lx
• Power Supply: 110V
• Accessories: dust cover, eye-guards and clips



Packing List :

• One Trinocular Stereo Zoom Microscope Head
• One Pair of Widefield WF10X Eyepieces
• One Pillar Stand with Incident and Darkfield Illumination System
• One Rectangular Fluorescent Lighting Box

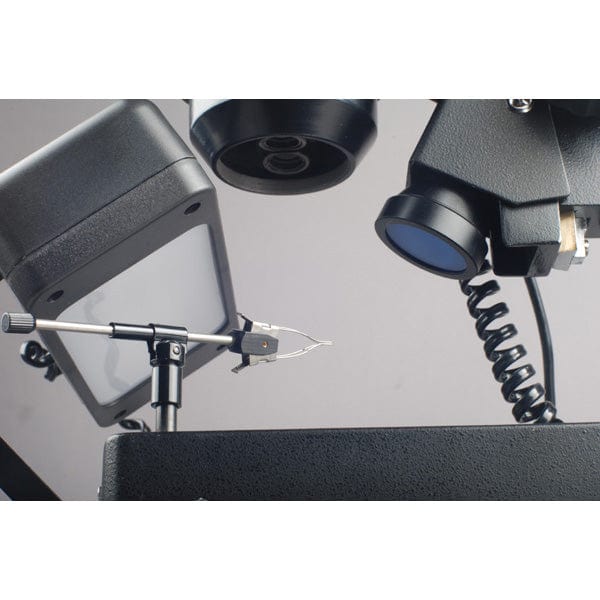

• One 3D Gem Clamp (tweezers)
• One Dust Cover
• User's Manual Download
• Shipping Weight: 20 lbs
